1-794617-6
Connector Housing, Micro MATE-N-LOK, Receptacle, 16 Ways, 3 mm
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 1-794617-6
Secondary Manufacturer Part#: 1-794617-6
-
RoHS 10 Compliant -
Tariff Charges

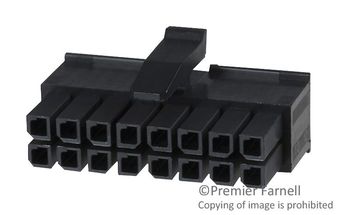

The 1-794617-6 is a 16-way 2-row Receptacle Housing with nylon 66/6 body, 2.5mm pitch spacing and socket contact. This receptacle housing is suitable for use with AMP micro MATE-N-LOK series socket contacts.
- 250VAC/DC Operating voltage
- Black colour
- -40 to 105°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Receptacle | ||
| Black | ||
| -40 to 105 °C | ||
| 3.0000 mm | ||
| 14.04 mm | ||
| 25 x 14.04 x 11.7 mm | ||
| 11.7 mm | ||
| 25 mm | ||
| 20 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
Factory Lead Time:
