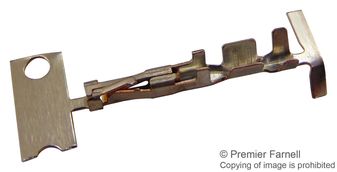

1-794606-2
Contact, Micro MATE-N-LOK, Socket, Crimp, 20 AWG, Gold Plated Contacts
-
RoHS 10 Compliant -
Tariff Charges
The TE Connectivity 1-794606-2 is a Micro MATE-N-LOK receptacle contact designed for reliable signal and low-power applications. It features a crimp termination style and is intended for use with socket (female) connectors. Suitable for wire gauges ranging from 24 to 20 AWG, it supports a current rating of up to 5A and a voltage rating of 250V AC or DC. The contact is made from phosphor bronze and is plated with gold in the mating area for enhanced conductivity and corrosion resistance, while the wire termination area is tin-plated. It includes a locking lance for secure retention within the housing and is compatible with insulation diameters between 0.89 mm and 1.52 mm. Designed to operate in temperatures from –40°C to +105°C, this contact is typically supplied on reels for high-volume production environments.
- Part Type: Receptacle Contact
- Series: Micro MATE-N-LOK
- Termination Style: Crimp
- Contact Gender: Socket (Female)
- Wire Gauge Range: 24–20 AWG
- Current Rating: Up to 5 Amps
- Voltage Rating: 250 VAC / 250 VDC
- Contact Material: Phosphor Bronze
- Mating Area: Gold (Au), 30 µin (0.76 µm)
- Underplating: Nickel, 50 µin (1.27 µm)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Brass | ||
| Gold | ||
| 20 | ||
| Pin | ||
| Cable Mount | ||
| -40 to 105 °C | ||
| 13.73 x 2.67 x 1.93 mm | ||
| HDE-20 | ||
| Crimp | ||
| 24 to 20, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | PROJECTED FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908140 |
| Schedule B: | 8538907040 |
