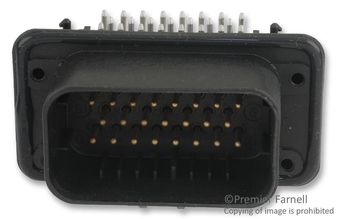

1-776267-1
Rectangular Power Connector, Right Angle, 14 Contacts, AMPSEAL, PCB Mount, Through Hole, 2 mm
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Uncategorized
Avnet Manufacturer Part #: 1-776267-1
Secondary Manufacturer Part#: 1-776267-1
-
RoHS 10 Compliant -
Tariff Charges
The 1-776267-1 is a 14-position right angle sealed Header Assembly with gasket. The AMPSEAL series header has mounting holes, locking interface and boardlocks PCB mount retention.
- 250VAC Voltage rating
- UL94V-0 Flammability rating
- -40 to 125°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyamide | ||
| Right Angle | ||
| Brass | ||
| Tin | ||
| Receptacle | ||
| Green | ||
| Gold | ||
| Through Hole | ||
| 4.0000 mm | ||
| 37.9 mm | ||
| 48.8 x 37.9 x 32.1 mm | ||
| 32.1 mm | ||
| 48.8 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
