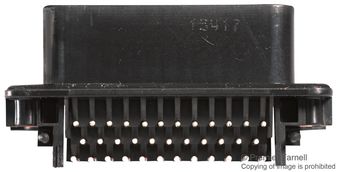

1-776163-1
Rectangular Power Connector, 35 Contacts, AMPSEAL, PCB Mount, Through Hole, 4 mm, Header
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 1-776163-1
Secondary Manufacturer Part#: 94C1525
-
RoHS 10 Compliant -
Tariff Charges
The 1-776163-1 is a 35-position 3-row horizontal Rectangular Header with tin-plated brass contacts and white glass filled PBT housing. The AMPSEAL series sealed connector supports through-hole solder termination method?and boardlocks PCB mount retention type.?It is suitable for power, signal circuit application.
- With PCB mount retention
- IP6K9K Protection rating
- Rugged
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PBT (Polybutylene Terephthalate) | ||
| Right Angle | ||
| Brass | ||
| Gold | ||
| Header | ||
| Black | ||
| Gold | ||
| 10 mOhm | ||
| 17 A | ||
| Through Hole | ||
| 35 | ||
| 3 | ||
| -40 to 125 °C | ||
| 4.0000 mm | ||
| 37.9 mm | ||
| 76.9 x 37.9 x 32.1 mm mm | ||
| 32.1 mm | ||
| 76.9 mm | ||
| 776163 | ||
| Solder | ||
| Shrouded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
