1-770904-0
Contact, Mini Universal MATE-N-LOK, Socket, Crimp, 18 AWG, Gold Plated Contacts

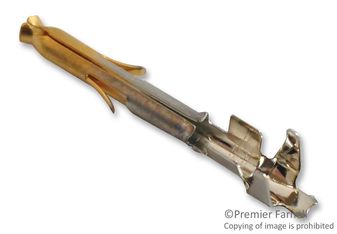

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 1-770904-0
Secondary Manufacturer Part#: 1-770904-0
-
RoHS 10 Compliant -
Tariff Charges
The 1-770904-0 is a Power Contact made of brass with gold plated finish. The Mini-Universal MATE-N-LOK wire-to-wire connector crimp socket contact accepts 22 to 18AWG stranded discrete wire. It is suitable for use with plug housing.
- 11.2A Rated current
- 600VAC Operating voltage
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.3 to 0.9 mm² | ||
| Power Housing | ||
| Brass | ||
| Gold | ||
| Power | ||
| Receptacle | ||
| Bright Tin Over Nickel | ||
| 20 mOhm | ||
| 11.2 A | ||
| Cable Mount | ||
| -55 to 105 °C | ||
| 0.76 um | ||
| 17.25 x 3.81 x 4.24 mm mm | ||
| 770904 | ||
| No | ||
| Crimp | ||
| 22 to 18, 22 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
