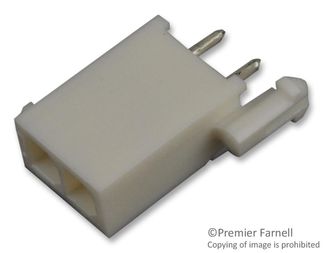

1-770166-1

The 1-770166-1 is a 2-position 1-row vertical Wire-to-Board Mini Rectangular Connector with gold-plated brass contacts and white nylon housing. The Universal MATE-N-LOK plug supports through-hole solder termination method to PC board?and chamfered edges mating alignment type. It offers wire-to-board connections with contacts on a 4.14mm centreline and current ratings up to 9.5Amps maximum per line. Plug and receptacle housings allow wire-to-wire and wire-to-panel configurations and header assemblies offer wire-to-board connections in vertical and right angle configurations. The Mini-Universal MATE-N-LOK connector system also offers a splash-proof design allowing for use in areas where high humidity, intermittent liquid splashing or foam-in applications require a sealed connector for improved electrical performance.

• Contacts are on 4.14mm centreline spacing
• Pins and sockets can be accommodated in the same housing
• Splash-proof design for applications that require sealing
