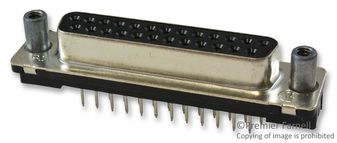

D Sub Connector, Standard, Receptacle, AMPLIMITE HD-20 Series, 25 Contacts, DB, Solder
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, D-Shaped Connectors, Standard D-Sub Connectors
Avnet Manufacturer Part #: 1-5745967-6
Secondary Manufacturer Part#: 1-5745967-6
-
RoHS 10 Compliant -
Tariff Charges
- HD-20 Front Metal-Shell Straight Posted Connectors
- Flame retardant thermoplastic housing material, UL 94V-0 rated
- HD-20 straight posted connectors are available in 9, 15, 25, 37 and 50 positions (Shell Sizes 1 thru 5)
- HD-20 straight posted connectors in Full Metal-Shell, Front Metal-Shell and All-Plastic versions
- HD-20 connectors with ACTION PIN contacts are available in low, medium and high profiles with integral standoffs
- ACTION PIN contact connectors for both .093 [2.36] and .062 [1.58] min. thick pc board application
- Various straight posted connectors offer a choice of through-holes, 4-40 threaded inserts or 4-40 fixed female screwlocks
- Choice of contact platings
- Integral boardlock feature secures connector to pc board prior to soldering
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyester|Carbon Steel | ||
| Straight | ||
| Phosphor Bronze | ||
| Gold Over Nickel | ||
| Receptacle | ||
| Tin Over Nickel | ||
| 265 | ||
| Through Hole | ||
| 25 | ||
| 2 | ||
| -55 to 105 to 105 °C | ||
| 2.77 mm | ||
| 12.55 mm | ||
| 53.09 x 12.55 x 12.16 mm | ||
| 12.16 mm | ||
| 53.09 mm | ||
| 5745967 | ||
| DB | ||
| Solder |
