1-480763-0
Connector Housing, Universal MATE-N-LOK Series, Plug, 5 Ways, 6.35 mm

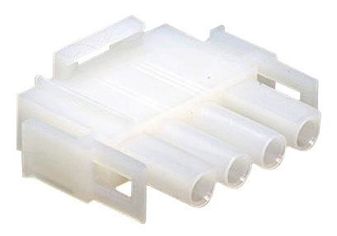

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 1-480763-0
Secondary Manufacturer Part#: 1-480763-0
-
RoHS 10 Compliant -
Tariff Charges
The 1-480763-0 is a 5-way 1-row natural color free-hanging Socket Housing (plug) made of nylon GF. It is ideal for use with universal MATE-N-LOK cap or header.
- UL94V-2 Flammability rating
- In-line contact layout
- 600VAC Operating voltage
- -55 to 125°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Plug | ||
| Natural | ||
| -55 to 125 °C | ||
| 6.3500 mm | ||
| 27.43 mm | ||
| 27.43 x 14.73 mm | ||
| 14.73 mm | ||
| 30 to 10, 30 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
Factory Lead Time:
