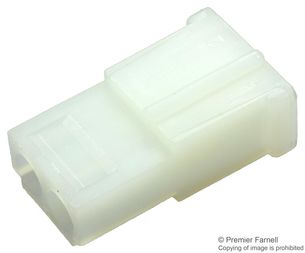

1-480318-0
Connector Housing, AMP Commercial MATE-N-LOK Series, Plug, 2 Ways, 5.08 mm
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 1-480318-0
Secondary Manufacturer Part#: 82F9877
-
RoHS 10 Compliant -
Tariff Charges
The 1-480318-0 from TE Connectivity is a Commercial MATE-N-LOK series housing. It is 2 position housing with pitch spacing of 5.08mm.
- Housing material is nylon
- Flammability rating complies to UL94 V-2
- Integrated with detent locking feature
- Single row housing
- Suitable for wire to wire connector system
- Maximum operating temperature of the housing is 105°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Plug | ||
| Natural | ||
| 5.0800 mm | ||
| 21.84 mm | ||
| 13.46 x 21.84 x 7.49 mm | ||
| 7.49 mm | ||
| 13.46 mm | ||
| 30 to 14, 30 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907060 |
Factory Lead Time:
