1-350942-0
Pin Header, Right Angle, Wire-to-Board, 6.35 mm, 1 Rows, 2 Contacts, Through Hole Right Angle

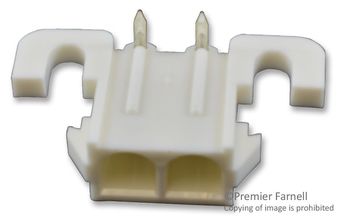

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Power Connectors
Avnet Manufacturer Part #: 1-350942-0
Secondary Manufacturer Part#: 94F4611
-
RoHS 10 Compliant -
Tariff Charges
The 1-350942-0 is a 2-position 1-row right angle Wire-to-Board Rectangular Connector with tin-plated phosphor bronze contact and white GF nylon housing. The Universal MATE-N-LOK series contacts completely enclosed in housings. It has dual locking lances provide optimum contact stability. It mate with the universal MATE-N-LOK II housings. Harness to PC board capability using pin or socket headers.
- Positive polarization
- Rear cavity identification
- Positive locking housings
- Insulation capability to 5.08mm diameter
- Low contact mating force
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Right Angle | ||
| Phosphor Bronze | ||
| Pre-Tin | ||
| Header | ||
| 265 | ||
| Through Hole | ||
| 6.3500 mm | ||
| 17.27 mm | ||
| 31.62 x 17.27 x 9.14 mm | ||
| 9.14 mm | ||
| 31.62 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
