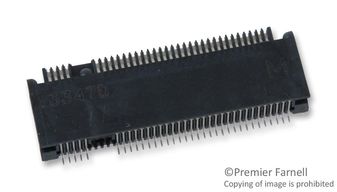

1-2199119-5
Card Edge Connector, Dual Side, 67 Contacts, Surface Mount, Right Angle
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Card Edge Connectors
Avnet Manufacturer Part #: 1-2199119-5
Secondary Manufacturer Part#: 1-2199119-5
-
RoHS 10 Compliant -
Tariff Charges
The 1-2199119-5 is a 67-position 2-row right angle Card Edge Socket with gold-plated copper alloy contacts and black high temperature thermoplastic housing. It supports multiple function add-in cards/modules including Wi-Fi, Bluetooth, global navigation satellite systems and near field communication. The M.2 (NGFF) series surface mount card edge connector is designed for double-sided modules.
- M Keying
- Support PCI express 3.0, USB 3.0 and SATA 3.0
- Save more than 20% PCB real estate compared to PCIe mini card
- Reduces connector height by 15%
- Ensures proper mating with various module cards
- Supports higher data rates
- 50VAC Operating voltage
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Card Edge | ||
| Thermoplastic | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold | ||
| Solder | ||
| Surface Mount | ||
| 67 | ||
| 2199119 | ||
| Solder | ||
| 50 Vac |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
