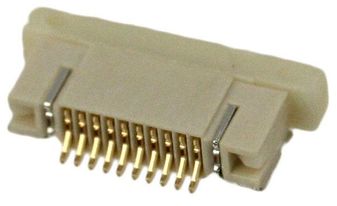

1-1734592-0
FFC / FPC Board Connector, 0.5 mm, 10 Contacts, Receptacle, FPC, Surface Mount, Bottom
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, FFC-FPC Connectors
Avnet Manufacturer Part #: 1-1734592-0
Secondary Manufacturer Part#: 1-1734592-0
-
RoHS 10 Compliant -
Tariff Charges
The 1-1734592-0 is a 10-position 1-row ZIF right angle shrouded Flex-to-Board FPC Connector with 0.025µm gold-plated phosphor bronze single beam design contacts and UL94V-O high temperature thermoplastic housing. The FPC series receptacle with stuffer actuator type and surface-mount termination method to PC board.
- Inline tail orientation
- With PCB mount retention?and mating alignment?
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| LCP (Liquid Crystal Polymer) | ||
| Right Angle | ||
| Socket | ||
| Phosphor Bronze | ||
| Gold | ||
| Natural | ||
| Tin Over Nickel | ||
| 260 | ||
| Surface Mount | ||
| 10 | ||
| 1 | ||
| -20 to 85 °C | ||
| 0.5000 mm | ||
| 5.1 mm | ||
| 10.43 x 5.1 x 2.05 mm mm | ||
| 2.05 mm | ||
| 10.43 mm | ||
| 1734592 | ||
| Solder | ||
| FPC Connector |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
