1-104480-6
Contact, AMPMODU Short Point, Socket, Crimp, 22 AWG, Gold Plated Contacts

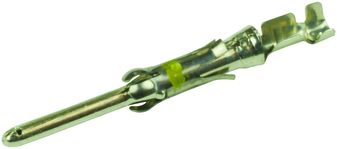

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 1-104480-6
Secondary Manufacturer Part#: 1-104480-6
-
RoHS 10 Compliant -
Tariff Charges
The 1-104480-6 is a 6-way Crimp Snap-in Receptacle Contact made of copper with gold-plated finish and crimp termination. This receptacle contact mates with 0.025 square posts and transmits data/power signal. All contacts are furnished on carrier strips which are interlocked for stability and positive location during termination.
- Employ dual cantilever beams for reliable connections
- 12mΩ Termination resistance
- 5000MΩ Insulation resistance
- 300VAC Voltage rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Copper Alloy | ||
| Gold | ||
| Receptacle | ||
| Cable Mount | ||
| -65 to 105 °C | ||
| 11.68 x 2.66 mm | ||
| AMPMODU | ||
| No | ||
| Crimp | ||
| 26 to 22, 26 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908140 |
| Schedule B: | 8538907040 |
