1-104480-4
Contact, AMPMODU Short Point, Socket, Crimp, 22 AWG, Tin Plated Contacts

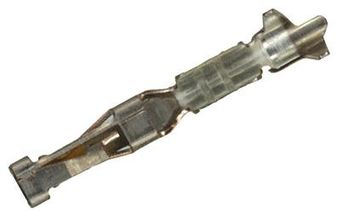

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 1-104480-4
Secondary Manufacturer Part#: 1-104480-4
-
RoHS 10 Compliant -
Tariff Charges
The 1-104480-4 is a socket Crimp Snap-in Contact made of copper alloy with tin plated finish. The standard pressure contact with insulation support. It accepts 26 to 22AWG wire size. This contact is suitable for AMPMODU short point connectors.
- 3A Contact current rating
- 12mO Termination resistance
- 300VAC Operating voltage
- 750V Dielectric withstanding voltage
- 5000MO Insulation resistance
- Rugged
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.12 to 0.14 mm² | ||
| Wire to Board Connector | ||
| Copper Alloy | ||
| Tin | ||
| Signal | ||
| Receptacle | ||
| Tin Over Nickel | ||
| 12 mOhm | ||
| 3 A | ||
| Cable Mount | ||
| -65 to 105 °C | ||
| 11.68 x 2.66 mm mm | ||
| AMPMODU | ||
| No | ||
| Crimp | ||
| 26 to 22, 26 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908140 |
| Schedule B: | 8538907040 |
Ships
in 1 bus. day
