1-102387-2
Connector Housing, AMPMODU Mod IV, Receptacle, 64 Ways, 2.54 mm, AMPMODU Socket Contacts

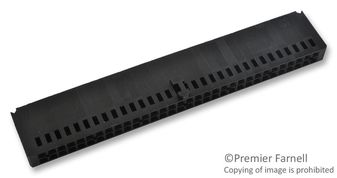

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 1-102387-2
Secondary Manufacturer Part#: 1-102387-2
-
RoHS 10 Compliant -
Tariff Charges
The 1-102387-2 is a 64-position 2-row Receptacle Housing with beryllium copper contacts and crimp termination and it is used with AMPMODU socket. The Mod IV series connector provides dual cantilever contact beam with built-in anti-overstress for reliable mating.
- UL94V-0 Flammability rating
- 2.54mm Pitch spacing
- 250V Voltage rating
- 5000MO Insulation resistance
- -65 to +105°C Temperature range
- Rugged
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 85.85 x 15.24 x 7.23 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907080 |
Ships
in 1 bus. day
