0460-202-16141
Circular Connector Contact, Machined, DT, Pin, Crimp, 16 AWG, 20 AWG, Deutsch's DT Series
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 0460-202-16141
Secondary Manufacturer Part#: 0460-202-16141
-
RoHS 10 Compliant -
Tariff Charges

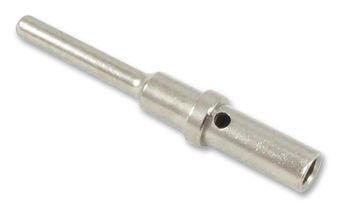

The 0460-202-16141 from Deutsch is a solid pin contact with size 16, 13amp continuous current capacity and accommodates wire size of 20AWG to 16AWG.
- Suitable for use with HD30/ HDP20/DRC/HD10/DT/DRB/DTV/AEC/STRIKE/Jiffy Splice series
- Nickel plating
- Contact material is copper alloy
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.52 to 1.31 mm² | ||
| Connector Wire to Board | ||
| Copper Alloy | ||
| Nickel | ||
| 16 | ||
| Power | ||
| Pin | ||
| Nickel | ||
| 24 A | ||
| Cable Mount | ||
| -55 to 125 °C | ||
| 3.38 x 20.85 mm | ||
| No | ||
| Crimp | ||
| 20 to 16 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536908085 |
Ships
in 1 bus. day
