03181700-080

Name: 03181700-080
Brand: TE Connectivity
SKU: 03181700-080
Availability: InStock

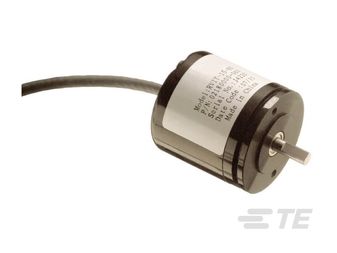

Inclinometer Analog/Ratiometric-OUT 0 to 80°

Click image to enlarge

Manufacturer:TE Connectivity

Product Category: Sensors & Transducers, Motion & Position Sensors, Rotary Displacement Sensors

Avnet Manufacturer Part #: 03181700-080

Secondary Manufacturer Part#: 03181700-080

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Angular Sensing Range	80°
	Operating Temperature Max	125 °C
	Operating Temperature Min	-55 °C
	Output Current	20
	Product Range	RVIT Series
	Shaft Diameter	4.75
	Supply Voltage	28V DC
	Torque Range	8.6gf-cm

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	NO RECOVERY FEE
ECCN:	EAR99
HTSN:	9031808085
Schedule B:	9031808080

In Stock : 0

Additional inventory

Factory Lead Time: 91 Weeks

Price for: Each

Quantity:

Min:5 Mult:5

USD $:

$935.55714

10+

$851.7973

25+

$775.52632

50+

$755.64103

100+

$736.75
