02560927-000

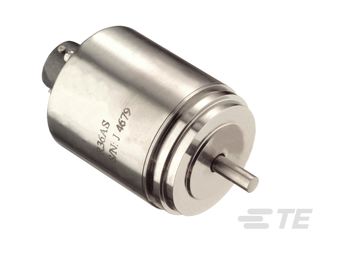

The R36AS RVDT (Rotary Variable Differential Transformer) is an angular position sensor that incorporates a proprietary non-contact design which dramatically improves long term reliability when compared to other traditional rotary devices such as synchros, resolvers and potentiometers. This unique design eliminates assemblies that degrade over time such as slip rings, rotor windings, contact brushes and wipers, without sacrificing accuracy.

High reliability and performance are achieved through the use of a specially shaped rotor and wound stator coil that together simulate the operation of a Linear Variable Differential Transformer (LVDT). Rotational movement of the rotor shaft results in a linear change in the amplitude of the output signal, directly proportional to the shaft angle change, while the phase of this signal indicates the direction of displacement from the null point. Noncontact electromagnetic coupling of the rotor provide infinite resolution.

• High accuracy
• Infinite resolution
• Long term reliability
• Wide -55º to +150ºC operating temp range
• Rugged stainless steel housing
• Shielded ABEC 3 precision bearings
