02560231-160

Name: 02560231-160
Brand: TE Connectivity
SKU: 02560231-160
Availability: InStock

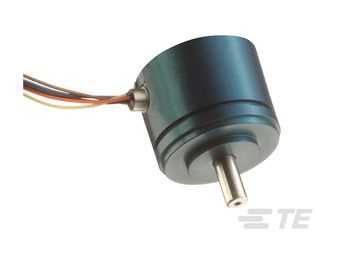

Inclinometer Digital-OUT ±60° 3V Servo Mount

Click image to enlarge

Manufacturer:TE Connectivity

Product Category: Sensors & Transducers, Motion & Position Sensors, Rotary Displacement Sensors

Avnet Manufacturer Part #: 02560231-160

Secondary Manufacturer Part#: 02560231-160

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Angular Sensing Range	60°
	Operating Temperature Max	150 °C
	Operating Temperature Min	-55 °C
	Product Range	R30A Series
	Shaft Diameter	4.763
	Supply Voltage	3Vrms
	Torque Range	0.3gf-cm to 1.1gf-cm

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	9031808085
Schedule B:	9031808080

In Stock : 0

Additional inventory

Factory Lead Time: 103 Weeks

Price for: Each

Quantity:

Min:5 Mult:1

USD $:

$709.09928

10+

$672.17042

25+

$618.81933

50+

$609.11145

100+

$599.18518
