02350510-000

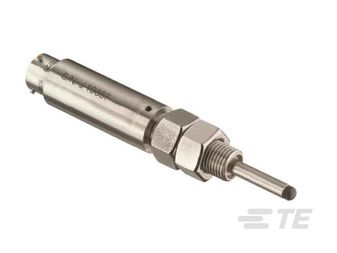

The GCD Series heavy-duty DC operated gage heads enable high performance in environments containing moisture, dirt, and fluid contaminants. These Gage heads are spring loaded LVDTs (Linear Variable Differential Transformers) with precision linear bearings and internal conditioning electronics. Operating on a nominal ±15VDC supply, the GCD Series delivers an extremely linear, low noise ±10VDC output

• Hermetically sealed housing
• 25 µ-inch [0.6 µm] repeatability
• IEC IP68 rating to 1,000 PSI [70 bars]
• Long strokes up to ±2 inches
• Hardened tool steel contact tip
• High side load resistance
• Long cycle life
