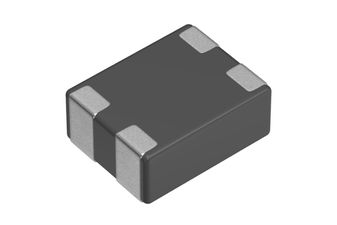

MCZ1210AH900L2TA0G
Choke, Common Mode, 140 nH, 90 Ohm, 100 mA, 0504 [1210 Metric]
Click image to enlarge
Manufacturer:TDK
Product Category:
Inductors, SMD Common Mode Chokes
Avnet Manufacturer Part #: MCZ1210AH900L2TA0G
Secondary Manufacturer Part#: MCZ1210AH900L2TA0G
-
RoHS 10 Compliant -
Tariff Charges
MCZ1210AH900L2TA0G is a MCZ-AH series multilayer common mode filter for high-speed differential signal lines (USB2.0, LVDS, etc.). Suitable for Servers, PCs, DSC, DVC, TV, game, wearable equipment applications.
- 5V max rated voltage
- 100mA max rated current
- 10Mohm insulation resistance
- 1.75ohm max DC resistance
- 90 ohm common mode impedance at 100MHz and ±25% tolerance
- Operating temperature range from -40°C to +85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 100 mA | ||
| 90 Ohm | ||
| 140 nH | ||
| 504 | ||
| 0.5 mm | ||
| 1.25 mm | ||
| MCZ-AH Series | ||
| 1 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504500000 |
