B82801C2245A200
Current Transformer 1:200 1500VAC 0.00028Ohm Prim. DCR 2.9Ohm Sec. DCR 40000mA Surface Mount

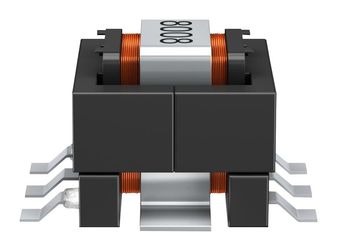

Click image to enlarge
Manufacturer:TDK
Product Category:
Transformers, Current Transformers
Avnet Manufacturer Part #: B82801C2245A200
Secondary Manufacturer Part#: B82801C2245A200
-
RoHS 10 Compliant -
Tariff Charges
- Very low DC resistance
- Different turns ratios
- Small package
- Other pinning on request
- RoHS compatible
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Ferrite | ||
| Gull wing | ||
| 0.00028 Ohm | ||
| 1 Ohm | ||
| Surface Mount | ||
| 50, 500 kHz | ||
| -40 to 130 °C | ||
| DIP | ||
| 40000 mA | ||
| 14.48 x 19.91 x 10 mm | ||
| Current Sense Transformer | ||
| 1:200 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504312000 |
| Schedule B: | 8504312000 |
Factory Lead Time:
