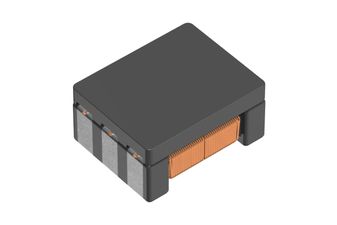

ACM2520-801-3P-T002

Name: ACM2520-801-3P-T002
Brand: TDK
SKU: ACM2520-801-3P-T002
Availability: InStock

Click image to enlarge

Manufacturer:TDK

Product Category: Inductors, SMD Common Mode Chokes

Avnet Manufacturer Part #: ACM2520-801-3P-T002

Secondary Manufacturer Part#: ACM2520-801-3P-T002

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	DC Current Rating	150 mA
	Impedance	800 Ohm
	Inductance	2 uH
	Inductor Case / Package	1008
	Product Height	1.2 mm
	Product Length	2.5 mm
	Product Range	ACM Series
	Product Width	2 mm

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8504904100
Schedule B:	8504900080

In Stock : 4000.0

Ships in 1 bus. day

Additional inventory

Factory Lead Time: 105 Weeks

Price for: Each

Quantity:

Min:2000 Mult:2000

USD $:

2000+

$0.3575

20000+

$0.33453

40000+

$0.32332

80000+

$0.3129

160000+

$0.30312
