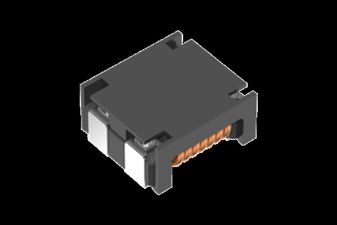

ACM12V-701-2PL-TL00
Filter, Common Mode, ACM-V Series, 700 ohm, 8 A, 12mm x 11mm x 6mm
Click image to enlarge
Manufacturer:TDK
Product Category:
Inductors, SMD Common Mode Chokes
Avnet Manufacturer Part #: ACM12V-701-2PL-TL00
Secondary Manufacturer Part#: ACM12V-701-2PL-TL00
-
RoHS 10 Compliant -
Tariff Charges
- Exclusive square type closed magnetic core designed as an exclusive core is used, so it can be small while maintaining the same features
- Low profile design makes it optimal for surface mounting
- Excellent impedance characteristics, making it great for suppressing common mode noise
- Series includes large current products up to 8A, making them compatible with various DC power lines
- Covers a wide operating temperature range from –40 to +125°C.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 8 A | ||
| 700 Ohm | ||
| 7.6 uH | ||
| SMD | ||
| 6 mm | ||
| 12 mm | ||
| ACM-V Series | ||
| 11 mm | ||
| AEC-Q200 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8532240020 |
| Schedule B: | 8532240020 |
