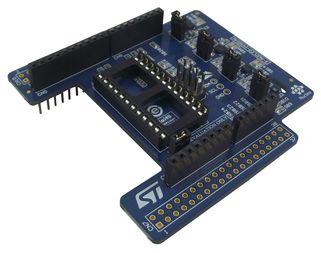

X-NUCLEO-IKS01A1
Expansion Board, Motion MEMS & Environmental Sensor, For STM32 Nucleo, Arduino UNO R3 Compatible
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Kits & Tools, Hardware Development Tools
Avnet Manufacturer Part #: X-NUCLEO-IKS01A1
Secondary Manufacturer Part#: X-NUCLEO-IKS01A1
-
RoHS 10 Compliant -
Tariff Charges
The X-NUCLEO-IKS01A1 is a MEMS inertial and environmental Sensor Evaluation Board System. It is compatible with the Arduino UNO R3 connector layout and is designed around STMicroelectronics' LSM6DS0 3-axis accelerometer + 3-axis gyroscope, the LIS3MDL 3-axis magnetometer, the HTS221 humidity sensor and the LPS25H pressure sensor. The X-NUCLEO-IKS01A1 interfaces with the STM32 microcontroller via the I²C pin and it is possible to change the default I²C port.
- LSM6DS0 - MEMS 3D accelerometer (±2/±4/±8g) + 3D gyroscope (±245/±500/±2000dps)
- LIS3MDL - MEMS 3D magnetometer (±4/±8/±12/16 gauss)
- LPS25H - MEMS pressure sensor, 260 to 1260hPa absolute digital output barometer
- HTS221 - capacitive digital relative humidity and temperature
- DIL 24-pin socket available for additional MEMS adapters and other sensors (UV index)
- Free comprehensive development firmware library for all sensors compatible with STM32Cube firmware
- Compatible with STM32 Nucleo boards
- Equipped with Arduino UNO R3 connector
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Microcontroller Tools | ||
| I2C | ||
| Microcontroller Tools |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 9023000000 |
| Schedule B: | 9023000000 |
