VNQ860SP-E
Power Switch Hi Side 0.25A 12-Pin(10+2Tab) PowerSO Tube

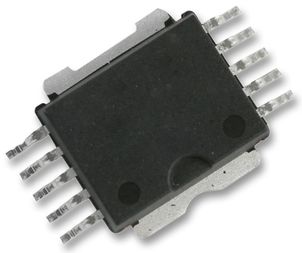

Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Power Management, Drivers & Controllers, Gate Drivers
Avnet Manufacturer Part #: VNQ860SP-E
Secondary Manufacturer Part#: VNQ860SP-E
-
RoHS 10 Compliant -
Tariff Charges
The VNQ860SP-E is a quad-channel High-side Driver realized in STMicroelectronics VIPower M0-3 technology and intended to drive any kind of load with one side connected to ground. Active current limitation combined with thermal shutdown and automatic resta
- CMOS compatible I/Os
- Under-voltage and overvoltage shutdown
- Shorted load protection
- Thermal shutdown
- Very low standby current
- Protection against loss of ground
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Matte Tin | ||
| 250 | ||
| 0.25 A | ||
| Surface Mount | ||
| MSL 3 - 168 hours | ||
| 4 | ||
| 10 | ||
| 4 | ||
| 5.5 to 36 V | ||
| -40 to 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 12PowerSO | ||
| 12 | ||
| 7.6 x 9.5 x 3.65 mm | ||
| PowerSO | ||
| 0.27 Ohm | ||
| High Side |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
Factory Lead Time:
