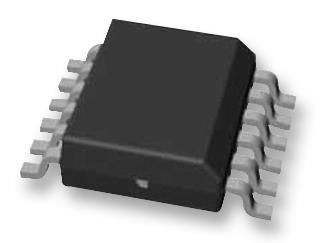

VND7140AJ12TR
MOSFET DRVR 4A 2-OUT Hi Side Non-Inv 12-Pin PowerSSO T/R
-
RoHS 10 Compliant -
Tariff Charges
The device is a double channel high-side driver manufactured using ST proprietary VIPower® technology and housed in PowerSSO-12 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS compatible interface, providing protection and diagnostics. The device integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown. A current sense delivers high precision proportional load current sense in addition to the detection of overload and short circuit to ground, short to VCC and off-state open-load. A sense enable pin allows off-state diagnosis to be disabled during the module low-power mode as well as external sense resistor sharing among similar devices.
Automotive qualified Extreme low voltage operation for deep cold cranking applications (compliant with LV124, revision 2013) General Double channel smart high-side driver with CurrentSense analog feedback Very low standby current Compatible with 3 V and 5 V CMOS outputs CurrentSense diagnostic functions Multiplexed analog feedback of: load current with high precision proportional current mirror Overload and short to ground (power limitation) indication Thermal shutdown indication Off-state open-load detection Output short to VCC detection
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Non-Inverting | ||
| High Side | ||
| 70 us | ||
| 3V|5V|CMOS | ||
| CMOS, Logic, Logic | ||
| 100000 ns | ||
| 120000 ns | ||
| Surface Mount | ||
| 2 | ||
| 12 | ||
| 2 | ||
| 2 | ||
| -40 to 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 40 us | ||
| 12PowerSSO | ||
| 4 A | ||
| 12 | ||
| MOSFET | ||
| 5(Max) x 4(Max) x 1.6(Max) | ||
| No | ||
| Automotive | ||
| PowerSSO | ||
| 28 V | ||
| 4 V | ||
| 13 V |
