VN330SP-E
Power Switch Hi Side 0.7A 10-Pin(10+2Tab) PowerSO Tube

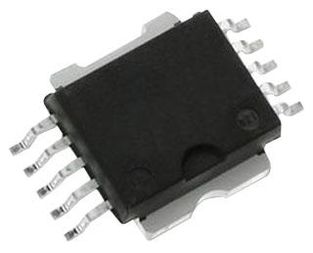

Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Power Management, Power Load Distribution Switches
Avnet Manufacturer Part #: VN330SP-E
Secondary Manufacturer Part#: VN330SP-E
-
RoHS 10 Compliant -
Tariff Charges
The VN330SP-E is a monolithic device made using STMicroelectronics VIPower technology, intended for driving four indipendent resistive or inductive loads, with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from overtemperature and short circuit. The open drain diagnostic output indicates overtemperature conditions.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 700 mA | ||
| 30 V | ||
| Matte Tin | ||
| 250 | ||
| 0.7 A | ||
| Surface Mount | ||
| MSL 3 - 168 hours | ||
| 4 | ||
| 10 | ||
| 4 | ||
| 200 mOhm | ||
| 10 to 36 V | ||
| 125 °C | ||
| -40 °C | ||
| 10PowerSO | ||
| 10 | ||
| 7.6 x 9.5 x 3.65 mm | ||
| PowerSO | ||
| 6 mA | ||
| 0.2 Ohm | ||
| High Side |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
Factory Lead Time:
