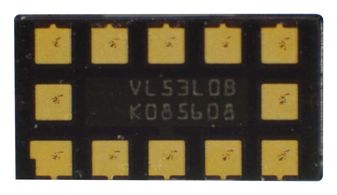

VL53L0CXV0DH/1

The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances unlike conventional technologies. Measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications.

The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second generation FlightSenseTM patented technology.

The VL53L0X’s 940nm VCSEL emitter (Vertical Cavity Surface-Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distance, higher immunity to ambient light and better robustness to cover-glass optical cross-talk.

• Fully integrated miniature module
  • 940nm Laser VCSEL
  • VCSEL driver
  • Ranging sensor with advanced embedded micro controller
  • 4.4 x 2.4 x 1.0mm
• Fast, accurate distance ranging
  • Measures absolute range up to 2m
  • Reported range is independent of the target reflectance
  • Operates in high infrared ambient light levels
  • Advanced embedded optical cross-talk compensation to simplify cover glass selection
• Eye safe
  • Class 1 laser device compliant with latest standard IEC 60825-1:2014 - 3rd edition
• Easy integration
  • Single reflowable component
  • No additional optics
  • Single power supply
  • I2C interface for device control and data transfer
  • Xshutdown (Reset) and interrupt GPIO
  • Programmable I2C address
