VIPER267KDTR
AC/DC Converter, Flyback, 85V to 230V AC In, 12W, NSOIC-16

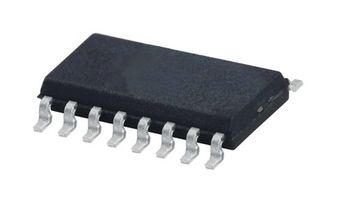

Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Power Management, Voltage Regulators, AC / DC Off Line Converters
Avnet Manufacturer Part #: VIPER267KDTR
Secondary Manufacturer Part#: VIPER267KDTR
-
RoHS 10 Compliant -
Tariff Charges
The device is an offline converter with a 1050V avalanche rugged power section, a PWM controller, user defined overcurrent limit, protection against feedback network disconnection, hysteretic thermal protection, soft start-up and safe auto-restart after any fault condition. Advance frequency jittering reduces EMI filter cost. Burst mode operation and the device‘s very low consumption both help to meet the standard set by energy saving regulations.
- 1050 V avalanche rugged power section
- Current mode PWM controller
- Embedded high voltage startup and sense FET
- Drain current limitation (OCP)
- Standby power 30 mW at 230 VAC
- Jittered switching frequency (60 kHz ± 4 kHz) for low EMI
- Embedded error amplifier for non-isolated SMPS
- On-board soft-start
- Safe auto-restart after a fault condition
- Hysteretic thermal shutdown
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 440 Vac | ||
| 85 Vac | ||
| 230 V | ||
| 85 V | ||
| Surface Mount | ||
| MSL 3 - 168 hours | ||
| 16 | ||
| 1 | ||
| -40 to 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 16NSOIC | ||
| 16 | ||
| 12 W | ||
| 3 A | ||
| 1.05 kV | ||
| 60 kHz | ||
| Buck (Step Down), Buck-Boost |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
