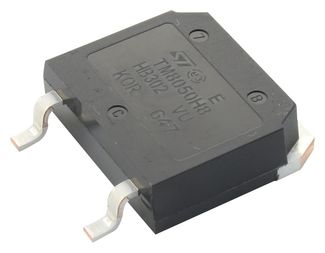

TM8050H-8D3-TR
58-THYRISTOR TRIAC ASD THYRISTOR
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Discretes, Thyristors, Silicon Controlled Rectifiers (SCR)
Avnet Manufacturer Part #: TM8050H-8D3-TR
Secondary Manufacturer Part#: TM8050H-8D3-TR
-
RoHS 10 Compliant -
Tariff Charges
80A 800V high temperature thyristor (SCR) in D3PAK package. Suitable for AC-DC rectifier controlled bridge, motorbike voltage regulator, variable speed motor drive, battery charging system, AC solid state relay, by-pass switch of UPS, industrial welding systems, motor soft starter.
- High junction temperature: Tj = 150°C
- Blocking voltage: VDRM = VRRM = 800V
- Nominal current: IT(RMS) = 80A
- Gate triggering current: IGT max. = 50mA
- High noise immunity: dV/dt 1KV/µs
- Increase of thermal margin due to extended Tj up to 150°C
- Low ID and IR in blocking state
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1.5 | ||
| 100 | ||
| 80 | ||
| 150 °C | ||
| 731 | ||
| 800 | ||
| Surface Mount |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541300080 |
| Schedule B: | 8541300080 |
Factory Lead Time:
