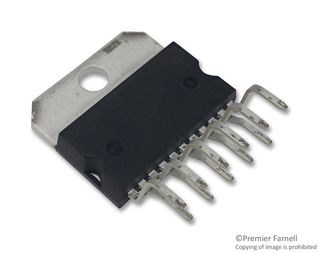

TDA2004R
Audio Amp Speaker 2-CH Stereo 12W Class-B 11-Pin(11+Tab) MULTIWATT Tube
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Amplifiers & Comparators, Audio Power Amplifiers
Avnet Manufacturer Part #: TDA2004R
Secondary Manufacturer Part#: TDA2004R
-
RoHS 10 Compliant -
Tariff Charges
The TDA2004R is a class B dual audio power amplifier in Multiwatt11 package specifically designed for car radio applications.Power booster amplifiers can be easily designed using this device that provides a high current capability (up to 3.5 A) and can drive very low impedance loads (down to 1.6 O).The TDA2004R allows very compact applications because few external components are required and it doesn't need electrical insulation between the package and the heatsink.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Class-B | ||
| Speaker | ||
| Differential | ||
| Tin-Lead | ||
| 4 Ohm | ||
| 30000 mW | ||
| Through Hole | ||
| MSL 1 - Unlimited | ||
| -40 to 150 °C | ||
| 4500 mA | ||
| Single-Ended | ||
| 2-Channel Stereo | ||
| 11Multiwatt | ||
| 11 | ||
| Single Supply | ||
| 19.6 x 5 x 10.7 mm | ||
| No | ||
| Multiwatt | ||
| 8V to 18V | ||
| 0.3@2Ohm@6W|0.2@4Ohm@4W % | ||
| 12x2@2Ohm W | ||
| 90 dB |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
Factory Lead Time:
