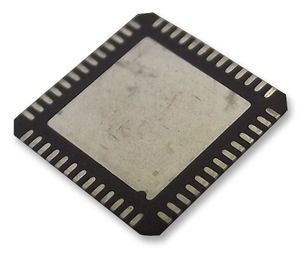

STM8L151C8U6TR

The STM8L151C8U6TR is a 8-bit ultra-low-power Microcontroller feature an enhanced STM8 CPU core providing increased processing power (up to 16MIPS at 16MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low-power operations. The family includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive in-application debugging and ultrafast flash programming. The device offer 64kB of flash program memory and data EEPROM.

• Advanced STM8 core
• Harvard architecture and 3-stage pipeline
• 16MHz Maximum frequency, 16 CISC MIPS peak
• Up to 40 external interrupt sources
• Low-power, ultra safe BOR reset with five programmable thresholds
• Ultralow-power POR/PDR
• Programmable voltage detector (PVD)
• 32kHz and 1 to 16MHz Crystal oscillators
• Internal 16MHz factory-trimmed RC and 38kHz low consumption RC
• Clock security system
