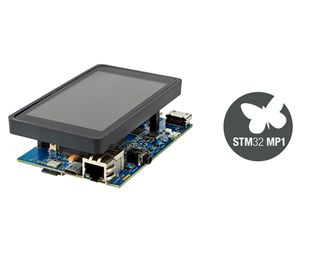

STM32MP157C-DK2

The STM32MP157A-DK1 and STM32MP157C-DK2 Discovery kits leverage the capabilities of STM32MP1 Series microprocessors to allow users easily develop applications using STM32 MPU OpenSTLinux Distribution software for the main processor and STM32CubeMP1 software for the co-processor.

They include an ST-LINK embedded debug tool, LEDs, push-buttons, one Ethernet 1-Gbps connector, one USB Type-C OTG connector, four USB Type-A Host connectors, one HDMI transceiver, one stereo headset jack with analog microphone, and one microSD connector.

To expand the functionality of the STM32MP157A-DK1 and STM32MP157C-DK2 Discovery kits, two GPIO expansion connectors are also available for Arduino and Raspberry Pi shields.

Additionally, the STM32MP157C-DK2 Discovery kit features an LCD display with a touch panel, and Wi-Fi and Bluetooth Low Energy capability.

• Common features
  • STM32MP157 Arm-based dual Cortex-A7 32 bits + Cortex-M4 32 bits MPU in TFBGA361 package
  • ST PMIC STPMIC1A
  • 4-Gbit DDR3L, 16 bits, 533 MHz
  • 1-Gbps Ethernet (RGMII) compliant with IEEE-802.3ab
  • USB OTG HS
  • Audio codec
  • 4 user LEDs
  • 2 user and reset push-buttons, 1 wake-up button
  • 5 V / 3 A USB Type-C power supply input (not provided)
  • Board connectors:
    • Ethernet RJ45
    • 4 × USB Host Type-A
    • USB Type-C DRP
    • MIPI DSI
    • HDMI
    • Stereo headset jack including analog microphone input
    • microSD card
    • GPIO expansion connector (Raspberry Pi shields capability)
    • Arduino Uno V3 expansion connectors
  • On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: Virtual COM port and debug port
  • STM32CubeMP1 and full mainline open-source Linux STM32 MPU OpenSTLinux Distribution (such as STM32MP1Starter) software a
