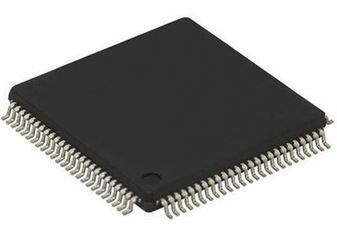

STM32H743VIT6

STM32H743VIT6 is a high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480MHz. The Cortex® -M7 core features a floating point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. STM32H742xI/G and STM32H743xI/G devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security. STM32H742xI/G and STM32H743xI/G devices incorporate high-speed embedded memories with a dual-bank Flash memory of up to 2 Mbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access.

• 82 I/O ports with interrupt capability
• 3 separate power domains which can be independently clock gated or switched off
• 4 DMA controllers to unload the CPU
• LCD-TFT controller up to XGA resolution
• Chrom-ART graphical hardware Accelerator™ (DMA2D) to reduce CPU load
• Hardware JPEG codec
• True random number generators (3 oscillators each)
• 96-bit unique ID
