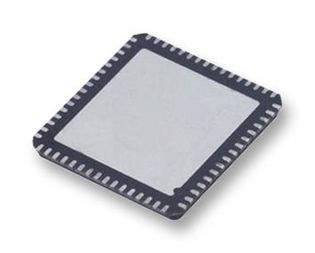

STM32F103RDY6TR

The STM32F103RDY6TR is a high-density performance line ARM®-based 32-bit MCU with 256 to 512kB flash, USB, CAN, 11 timers, 3 ADCs and 13 communication interfaces. The STM32F103RDY6TR performance line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72MHz frequency, high-speed embedded memories (flash memory up to 512kB and SRAM up to 64kB) and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces of up to two I²Cs, three SPIs, two I²Ss, one SDIO, five USARTs, an USB and a CAN. The STM32F103RDY6TR high-density performance line family operates in the -40 to +105°C temperature range, from a 2.0 to 3.6V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.

• 256 to 512kB Flash memory
• Flexible static memory controller with 4 chip select
• Supports compact flash, SRAM, PSRAM, NOR and NAND memories
• LCD parallel interface, 8080/6800 modes
• Clock, reset & supply management - 4 to 16MHz crystal oscillator, internal 8MHz factory-trimmed RC
• Sleep, stop and standby modes
• 12-channel DMA controller
• Debug mode - Serial wire debug (SWD) and JTAG interfaces, Cortex® -M3 embedded trace Macrocell™
• Up to 112 fast I/O ports
• CRC calculation unit, 96-bit unique ID
