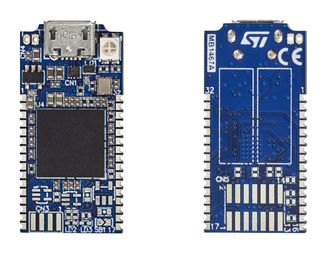

STLINK-V3MODS

STLINK-V3MODS is a STLINK v3 compact in-circuit debugger and programmer for STM32. It is a mini debugger and programmer for STM32 microcontroller. The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board. STLINK-V3MODS also provides a virtual COM port interface enabling the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I²C, CAN, and GPIOs) simplifying, for instance, the field programming through the bootloader. STLINK-V3MODS is ready to be embedded in a controller application and can be directly soldered on the PCB motherboard.

• Self-powered through a USB micro-B connector
• USB 2.0 high-speed compatible interface
• 5V source output capability upto 200mA
• 3.0 to 3.6V application voltage support and 5V tolerant inputs
• JTAG communication support, SWD and SWV (serial wire viewer)
• 3.0 to 3.6V application voltage support on the UART interface and 5V
• VCP frequency upto 15MHz
• 3.0 to 3.6V application voltage support and 5V tolerant inputs
• Drag-and-drop flash programming
• Two colour LEDs: communication and power
