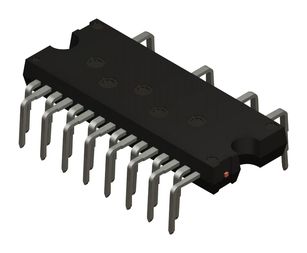

STGIPQ8C60T-HZ
IPM Module, IGBT, 600 V, 8 A, 1.8 kV, N2DIP-26L type Z, 26 Pin
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Discretes, Intelligent Power Modules
Avnet Manufacturer Part #: STGIPQ8C60T-HZ
Secondary Manufacturer Part#: 47AK6952
-
RoHS 10 Compliant -
Tariff Charges
STGIPQ8C60T-HZ is a SLLIMM™(small low-loss intelligent molded module)- nano - 2nd series IPM. It provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six improved short-circuit rugged trench gate field stop IGB
- IPM 8A, 600V, 3phase IGBT inverter bridge including 3 control Ics
- 3.3V, 5V, 15V TTL/CMOS input comparators with hysteresis and pull-down/ pull-up resistors
- Internal bootstrap diode
- Undervoltage lockout
- Short-circuit
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1800 Vrms | ||
| -40 to 150 °C | ||
| 32.15 x 12.45 x 4.1 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
Factory Lead Time:
