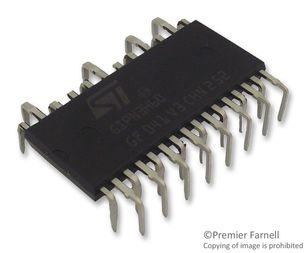

STGIPQ5C60T-HZ

STGIPQ5C60T-HZ is a second series of SLLIMM™ (small low-loss intelligent moulded module) nano that provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six improved short-circuit rugged trench gate fieldstop IGBTs with freewheeling diodes and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized switching speed. The package is designed to allow a better and more easily screwed-on heat sink, and is optimized for thermal performance and compactness in built-in motor applications or other low power applications where assembly space is limited. This IPM includes a completely uncommitted operational amplifier and a comparator that can be used to design a fast and efficient protection circuit.

• IPM 5A, 600V, 3-phase IGBT inverter bridge including 3 control ICs for gate driving
• 3.3V, 5V, 15V TTL/CMOS input comparators with hysteresis and pull-down/pull-up resistors
• Internal bootstrap diode, optimized for low electromagnetic interference
• Undervoltage lockout, Short-circuit rugged TFS IGBTs, shutdown function
• Interlocking function
• Op-amp for advanced current sensing
• Comparator for fault protection against overcurrent
• Up to ±2KV ESD protection (HBM C = 100pF, R = 1.5kohm)
• Isolation ratings of 1800Vrms/min
• UL recognition: UL 1557, file E81734 and NTC (UL 1434 CA 2 and 4)
