STGIPQ3H60T-HL

IPM Module I GBT 21V 2.6V 1500V 26-Pin N2DIP Tube

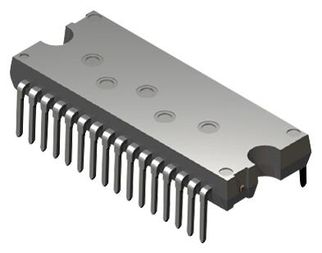

Click image to enlarge
STGIPQ3H60T-HL
  • STGIPQ3H60T-HL
Manufacturer:STMicroelectronics
Product Category: Discretes, Intelligent Power Modules
Avnet Manufacturer Part #: STGIPQ3H60T-HL
Secondary Manufacturer Part#: STGIPQ3H60T-HL
  • Legend Information Icon RoHS 10 Compliant
  • Legend Information Icon Tariff Charges

This intelligent power module implements a compact, high performance AC motor drive in a simple, rugged design. It is composed of six IGBTs with freewheeling diodes and three half-bridge HVICs for gate driving, providing low electromagnetic interference (

  • IPM 3 A, 600 V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes
  • Optimized for low electromagnetic interference
  • VCE(sat)negative temperature coefficient
  • 3.3 V, 5 V, 15 V

    • Technical Attributes

    Find Similar Parts

    		 Description Value
    		IGBT
    		1500 V
    		-40 to 125 °C

    ECCN / UNSPSC / COO

    Description Value
    Country of Origin: RECOVERY FEE
    ECCN: EAR99
    HTSN: 8542330001
    Schedule B: 8542330000
    In Stock :  0
    Additional inventory
    Factory Lead Time: 112 Weeks
    Price for: Each
    Quantity:
    Min:360  Mult:360
    USD $:
    360+
    $4.4253
    720+
    $4.40295
    1440+
    $4.3806
    2160+
    $4.35825
    2880+
    $4.3359
