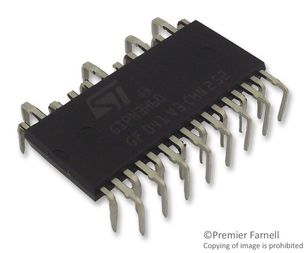

STGIPN3H60AT
MOSFET DRVR 1-OUT Hi/Lo Side Inv 26-Pin NDIP Tube
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Power Management, Drivers & Controllers, Motor Drivers / Controllers
Avnet Manufacturer Part #: STGIPN3H60AT
Secondary Manufacturer Part#: STGIPN3H60AT
-
RoHS 10 Compliant -
Tariff Charges
This intelligent power module implements a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six IGBTs with freewheeling diodes and three halfbridge HVICs for gate driving, providing low electromagnetic interference (E
IPM 3 A, 600 V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes Optimized for low electromagnetic interference VCE(sat) negative temperature coefficient 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresi
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 3-Phase Bridge | ||
| Inverting | ||
| High and Low Side | ||
| Matte Tin | ||
| 890 ns | ||
| 275 ns | ||
| Through Hole | ||
| 1 | ||
| 26 | ||
| 1 | ||
| 1 | ||
| 25 kHz | ||
| -25 to 125 °C | ||
| 125 °C | ||
| -40 °C | ||
| 26NDIP | ||
| 26 | ||
| 29.15 x 12.45 x 3.1 | ||
| SLLIMM Nano Series | ||
| No | ||
| Extended Industrial | ||
| NDIP | ||
| 17 V | ||
| 12 V | ||
| 15 V |
