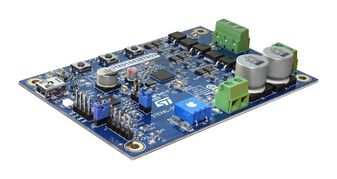

STEVAL-SPIN3201
Evaluation Board, STSPIN32F0 & STD140N6F7 MOSFET's, Advanced BLDC Controller, Easy to Use
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: STEVAL-SPIN3201
Secondary Manufacturer Part#: STEVAL-SPIN3201
-
RoHS 10 Compliant -
Tariff Charges
The STEVAL-SPIN3201 from STMicroelectronics is an advanced BLDC controller with embedded STM32 MCU evaluation board. This three-phase brushless DC motor driver is board based on the STSPIN32F0 and STD140N6F7 MOSFETs. The device provides an affordable and easy to use solution for the implementation of low voltage motor driving applications such as fans, drones and power tools. The board is designed for sensored or sensorless vector control FOC algorithms with 3-shunt sensing.
- Input voltage from 8V to 45V, output current up to 15Arms
- Power stage based on STD140N6F7 MOSFETs
- Embedded 3.3V buck regulator
- Embedded 12V LDO regulator
- Digital hall sensors and encoder input
- Overcurrent comparator, bus voltage sensing
- Fully supporting STM32 PMSM FOC software development kit (STSW-STM32100)
- Embedded ST-LINK/V2-1
- Easy user interface with buttons and trimmer
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| No | ||
| No | ||
| USB | ||
| Evaluation Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 9023000000 |
| Schedule B: | 9023000000 |
Factory Lead Time:
