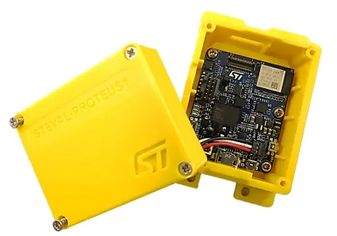

STEVAL-PROTEUS1

STEVAL-PROTEUS1 is an industrial sensor evaluation kit for condition monitoring based on the 2.4GHz STM32WB5MMG module. It is s an evaluation tool designed for temperature and vibration monitoring. The main board includes the STM32WB5MMG ultra-low-power and small form factor wireless radio module. This module is FCC and IC certified (FCC ID: YCP-STM32WB5M001 and IC: 8976A-STM32WB5M01). It is based on the STM32WB55VGY wireless SoC, compliant with the Bluetooth® Low Energy SIG specification v5.2, ZigBee 3.0, and IEEE 802.15.4-2011. STBLESensor app support for Android and iOS to ease the board and processing configuration, condition monitoring, and anomaly detection.

• IIS3DWB - ultra-wide bandwidth up to 6 KHz, low noise, 3-axis digital accelerometer
• ISM330DHCX - iNEMO module with machine learning core and finite state machine with digital o/p
• IIS2DLPC - high-performance ultra-low-power 3-axis digital accelerometer
• STTS22H - low-voltage, ultra-low-power, 0.5°C accuracy I²C/SMBus 3.0 temperature sensor
• 2Gb QSPI NOR flash memory for data storage
• STSAFE-A110 - secure element
• STBC02 Li-ion battery charger with LDO, ST1PS02 step-down converter with digital voltage selection
• Three push-buttons, four LEDs
• Flexible power supply options - LiPo battery, USB power, and primary battery
• SWD connector for debugging/programming capability, 34pin expansion connector compliant with STMOD+
