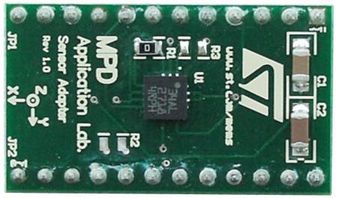

STEVAL-MKI015V1

The STEVAL-MKI015V1 is a is an adapter board designed to facilitate the evaluation of the LIS344ALH three axis analog output linear accelerometer. The LIS344ALH is an ultra compact consumer low power three axis linear accelerometer that includes a sensing element and an IC interface able to take the information from the sensing element and to provide an analog signal to the external world. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application. The STEVAL-MKI015V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LIS344ALH pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line. The pinout of the adapter is fully compatible with all other available adapter boards, making it possible to easily switch from one sensor to another during device evaluation without the need for board redesign.

• Complete LIS344ALH pinout in standard DIL24 socket
• Fully compatible with all other available adapter boards
• 2.4V to 3.6V single supply operation
• Output voltage, offset and sensitivity are ratiometric to the supply voltage
• High shock survivability ( 10000g )
• Embedded self test
• Factory trimmed device sensitivity and offset
• Low power consumption
• ±2g/±6g user selectable full scale
