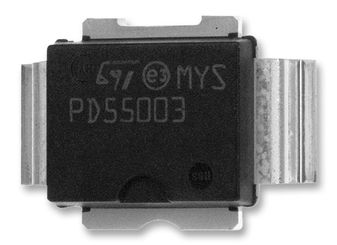

PD55003-E
RF FET Transistor, 40 V, 2.5 A, 31.7 W, 1 GHz, PowerSO-10RF
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Discretes, RF Discretes, RF FETs
Avnet Manufacturer Part #: PD55003-E
Secondary Manufacturer Part#: PD55003-E
-
RoHS 10 Compliant -
Tariff Charges
The PD55003-E is a N-channel RF Power Transistor designed for high gain, broad band applications. It operates at 12V in common source mode at frequencies of up to 1GHz. It boasts excellent gain, linearity and reliability thanks to ST's latest LDMOS technology mounted in the first true SMD plastic RF power package, the PowerSO-10RF. The superior linearity performance makes it an ideal solution for car mobile radios. It has been optimized for RF requirements and offers excellent RF performance and ease of assembly.
- Excellent thermal stability
- Common source configuration
- Enhancement-mode lateral field-effect transistor
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| N Channel | ||
| 2.5 | ||
| 40 | ||
| 3 | ||
| 1 | ||
| 480 | ||
| 165 °C | ||
| 31.7 | ||
| PowerSO-10RF | ||
| Surface Mount |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541210095 |
| Schedule B: | 8541210080 |
