P-NUCLEO-WB55

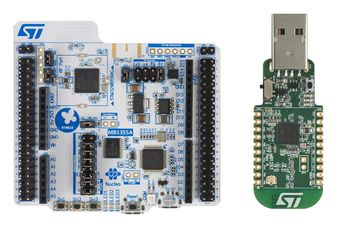

P-NUCLEO-WB55 is a STM32WB Nucleo-68 pack for wireless solutions. The P-NUCLEO-WB55 pack is a multi-protocol wireless and ultra-low-power device embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy(BLE) SIG specification v5.0 and with IEEE 802.15.4-2011. This Bluetooth™ 5 and 802.15.4 Nucleo pack includes USB dongle and Nucleo-68 with STM32WB55 MCUs supports Arduino™ Uno V3 and ST morpho connectivity.

• STM32WB microcontroller in a VFQFPN68 (nucleo68), STM32WB microcontroller in UFQFPN48 (USB dongle)
• 2.4GHz RF transceiver supporting Bluetooth v5.0, IEEE 802.15.4-2011 PHY & MAC(Nucleo68, USB dongle)
• Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer(Nucleo68, USB dongle)
• Three user LEDs, three user buttons and one reset button
• USB user with micro-B board connector
• Integrated PCB antenna or footprint for SMA connector
• Flexible power-supply options such as ST-LINK USB VBUS or external sources
• On-board socket for CR2032 batter
• On-board ST-LINK/V2-1 debugger/programmer with USB re- enumeration capability
• USB dongle has integrated PCB antenna or UFL connector
