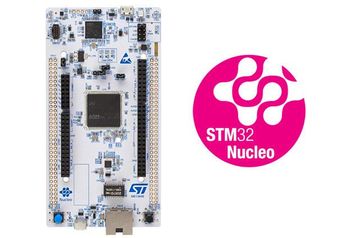

NUCLEO-H743ZI

The STM32 Nucleo-144 boards provide an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, by choosing from the various combinations of performance, power consumption, and features. The ST Zio connector, which is an extension of Arduino Uno V3, provides access to more peripherals while ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-144 boards do not require any separate probe as they integrate the ST-LINK/V2-1 debugger / programmer. The STM32 Nucleo-144 boards come with the STM32 comprehensive free software libraries and examples available with the STM32Cube package.

• STM32 microcontroller in LQFP144 package
• USB OTG or full-speed device (depending on STM32 support)
• Ethernet compliant with IEEE-802.3-2002 (depending on STM32 support)
• LSE crystal:
  • 32.768KHz crystal oscillator
• 3 user LEDs
• 2 push-buttons: USER and RESET
• Board connectors:
  • USB with Micro-AB
  • Ethernet RJ45 (depending on STM32 support)
• Board expansion connectors:
  • ST Zio including Arduino Uno V3
  • ST morpho
• Flexible power-supply options: ST-LINK USB VBUS or external sources
• On-board ST-LINK/V2-1 debugger/programmer with USB reenumeration capability: mass storage, virtual COM port and debug port
• Comprehensive free software libraries and examples available with the STM32Cube package
• Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs, Arm Mbed
• Arm Mbed Enabled compliant (onl
