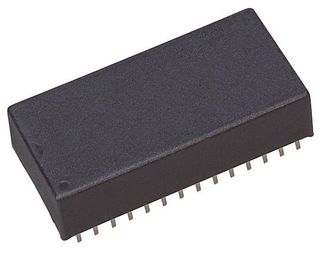

M48T08-150PC1
RTC, YY-MM-DD-dd, HH:MM:SS, Timekeeper, Parallel, 4.75 V to 5.5 V Supply, DIP-28
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Clock & Timing, Real Time Clocks
Avnet Manufacturer Part #: M48T08-150PC1
Secondary Manufacturer Part#: M48T08-150PC1
-
RoHS 10 Compliant -
Tariff Charges
The M48T08-150PC1 is a TIMEKEEPER® Non-volatile Static RAM and Real-time Clock which is pin and function compatible with the DS1643. This is a non-volatile pin and function equivalent to any JEDEC standard 8K x 8 SRAM. It also easily fits into many ROM, EPROM and EEPROM sockets providing the non-volatility of PROMs without any requirement for special write timing or limitations on the number of write that can be performed.
- Integrated ultralow power SRAM, real-time clock, power-fail control circuit and battery
- BYTEWIDE™RAM-like clock access
- BCD coded year, month, day, date, hours, minutes and seconds
- Typical clock accuracy of ±1 minute a month at 25°C
- Software controlled clock calibration for high accuracy applications
- Automatic power-fail chip deselect and WRITE protection
- 150ns Speed
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| YY-MM-DD-dd | ||
| PDIP | ||
| Parallel | ||
| Through Hole | ||
| 28 | ||
| 3, 3.6 V | ||
| 70 °C | ||
| 0 °C | ||
| 39.88 x 18.34 x 8.89 mm mm | ||
| M48T08 Series | ||
| PCDIP | ||
| 5.5 Vdc | ||
| 4.75 Vdc | ||
| HH:MM:SS, 24Hr |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
