L6203

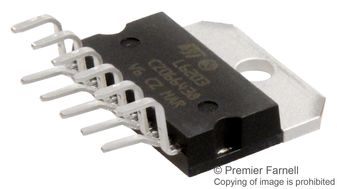

Motor Driver, DC Brush, Full Bridge, 2 Outputs, 12V to 48V Supply, 10A Out, Multiwatt-11
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Power Management, Drivers & Controllers, Motor Drivers / Controllers
Avnet Manufacturer Part #: L6203
Secondary Manufacturer Part#: L6203
-
RoHS 10 Compliant -
Tariff Charges
L6203 is a DMOS full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and µC compatible.
- Cross conduction protection
- TTL compatible drive
- Operating frequency up to 100kHz
- Thermal shutdown
- Internally logic supply
- High efficiency
- Multiwatt11 package
- Storage and junction temperature range from -40 to + 150°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Multiwatt | ||
| DMOS Full Bridge Motor Driver | ||
| Matte Tin | ||
| 250 | ||
| 15 mA | ||
| DC | ||
| Through Hole | ||
| 2 | ||
| 11 | ||
| 36 V | ||
| -40 to 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 10 A | ||
| 60 V | ||
| 11Multiwatt V | ||
| 11 | ||
| 19.6 x 5 x 10.7 mm | ||
| Multiwatt V | ||
| 48 V | ||
| 12 V | ||
| DMOS Full Bridge Motor Driver |
