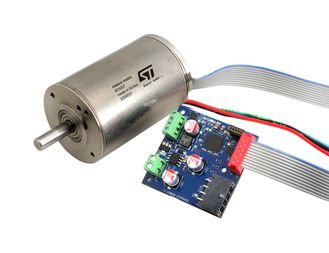

EVALKIT-ROBOT-1
STSPIN32F0A Advanced 3-phase Motor Controller Robotics and Automation Evaluation Kit
Click image to enlarge
Manufacturer:STMicroelectronics
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: EVALKIT-ROBOT-1
Secondary Manufacturer Part#: EVALKIT-ROBOT-1
-
RoHS 10 Compliant -
Tariff Charges
- Compact reference design kit for robotics and automation based on STSPIN32F0A
- 36V/6A peak power stage
- STSPIN32F0A advanced 3-phase motor controller embedding Cortex-M0 MCU
- STL7DN6LF3 60V, 35mohm dual N-channel MOSFETs
- Hall sensors
- Position control loop based on field oriented control
- MODBUS communication protocol through RS-485
- Extremely compact footprint (40mm x 40mm)
- Maxon EC-i 40 100W 3-phase brushless DC motor
- Maxon ENX 16 EASY 1024-pulse incremental encoder
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| STSPIN32F0A Control Board, Maxon EC-i 40 Brushless DC Motor | ||
| Evaluation Kit |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 9023000000 |
| Schedule B: | 9023000000 |
Factory Lead Time:
